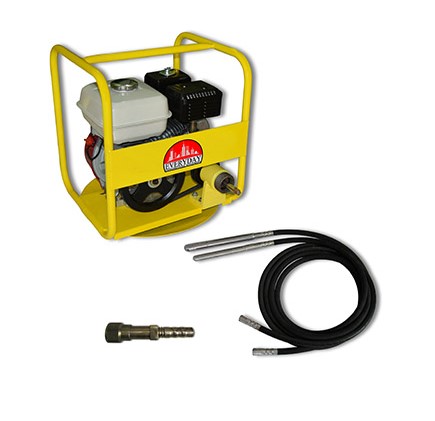

Type : CD65H
Engine : Honda
Power : 5.5 hp
Fuel Tank : 3.8 liter
Consumption : 1.12 liter/hour
Weight : 26 kg
Dimension : 460 x 460 x 510 (mm)
Engine GX160 (Basic Type)
Engine type : Air cooled, 4-stroke, overhead valve single cylinder, inclined 25°
Displacement : 163 cm3
Bore and stroke : 68 x 45 mm
Compression ratio : 9.0 : 1
Gross power : 4 kW (5.5 hp) / 3,600 rpm
Max. Net Torque : 10.3 N.m (1.05 kgf.m, 7.6 lbf.ft) / 2,500 rpm
Fuel tank capacity : 3.1 liter Gasoline Oktan 86 or higher
Ignition system : CDI type Magneto ignition
Spark plug : BPR6ES, (NGK) W220EPR-U (DENSO)
Starting system : Recoil starter
Air cleaner : Semi dry type
Oil Capacity : 0.58 liter SAE 10W-30 (API SE or Later)
Dimension : 304 x 362 x 335 mm
Dry weight : 15.1 kg
